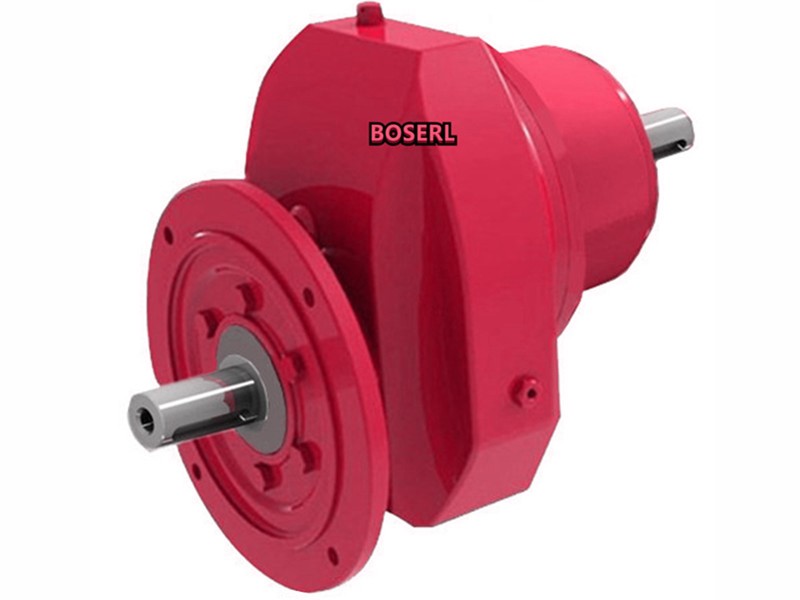

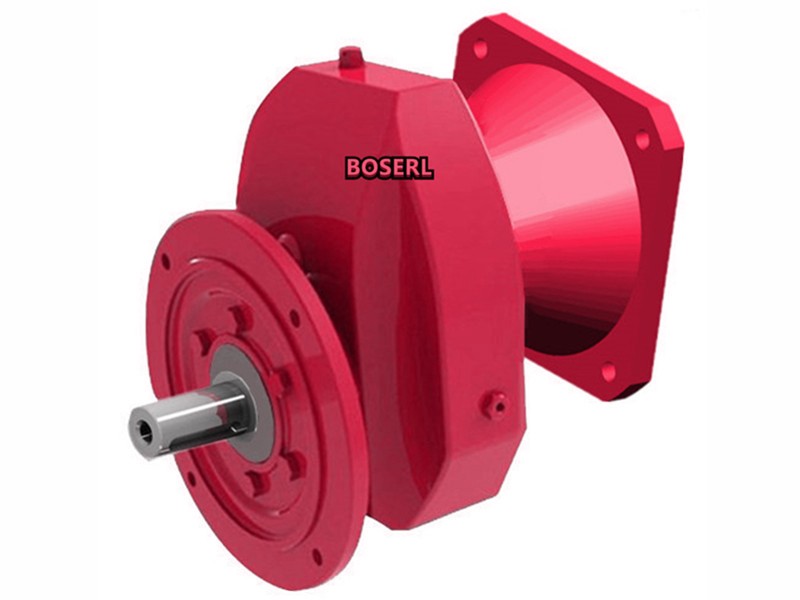

RXF98減速機詳細信息
RXF98減速機
訂購熱線：13360667204
RXF98減速機傳動比計算：齒輪減速馬達
輸送設備參數：齒輪直徑195，輸送6.9噸，每分鐘移動24米
24米÷（0.195齒輪直徑X3.14）=39.2轉每分鐘
6.9噸換算成N=69000N
69000×0.0975齒輪半徑×0.06摩擦系數=403.65N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍403.65×2=807.3N.m
電機轉數1400÷輸出轉數39.2=35.71比
807.3N.m輸出扭矩÷35.71比=22.61N.m電機扭矩
22.61N.m電機扭矩換算成功率3.59KW以上
對應的RXF98減速機選型參數：
型號：RXF98-BVPEJ4KW
減速比：35.71
輸出轉數：39.2轉每分鐘
輸出扭矩：860N.m
安全系數：3.20
RXF98減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）三相齒輪減速機
RXF98硬齒面斜齒輪減速機型號：
RXF97系列減速機選型參數：同軸斜齒輪減速電機
RXF97減速機配0.55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y0.55KW | 0.55kw | 4.8rpm | 1100N.m | 2.7 |
| RXF97-Y0.55KW | 0.55kw | 5.4rpm | 970N.m | 3.1 |
| RXF97-Y0.55KW | 0.55kw | 5.7rpm | 910N.m | 3.3 |
| RXF97-Y0.55KW | 0.55kw | 6.4rpm | 820N.m | 3.6 |
RXF97減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y0.75KW | 0.75kw | 4.9rpm | 1470N.m | 2 |
| RXF97-Y0.75KW | 0.75kw | 5.5rpm | 1290N.m | 2.3 |
| RXF97-Y0.75KW | 0.75kw | 5.8rpm | 1220N.m | 2.4 |
| RXF97-Y0.75KW | 0.75kw | 6.5rpm | 1090N.m | 2.7 |
| RXF97-Y0.75KW | 0.75kw | 7.6rpm | 940N.m | 3.2 |
| RXF97-Y0.75KW | 0.75kw | 8.3rpm | 860N.m | 3.5 |
RXF97減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y1.1KW | 1.1kw | 5.5rpm | 1900N.m | 1.55 |
| RXF97-Y1.1KW | 1.1kw | 5.8rpm | 1790N.m | 1.65 |
| RXF97-Y1.1KW | 1.1kw | 6.5rpm | 1610N.m | 1.85 |
| RXF97-Y1.1KW | 1.1kw | 7.5rpm | 1380N.m | 2.2 |
| RXF97-Y1.1KW | 1.1kw | 8.2rpm | 1260N.m | 2.4 |
| RXF97-Y1.1KW | 1.1kw | 9.3rpm | 1120N.m | 2.7 |
| RXF97-Y1.1KW | 1.1kw | 11rpm | 940N.m | 3.2 |
| RXF97-Y1.1KW | 1.1kw | 12rpm | 860N.m | 3.5 |
RXF97減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y1.5KW | 1.5kw | 5.5rpm | 2610N.m | 1.15 |
| RXF97-Y1.5KW | 1.5kw | 5.8rpm | 2460N.m | 1.2 |
| RXF97-Y1.5KW | 1.5kw | 6.5rpm | 2210N.m | 1.35 |
| RXF97-Y1.5KW | 1.5kw | 7.5rpm | 1900N.m | 1.55 |
| RXF97-Y1.5KW | 1.5kw | 8.2rpm | 1730N.m | 1.7 |
| RXF97-Y1.5KW | 1.5kw | 9.3rpm | 1540N.m | 1.95 |
| RXF97-Y1.5KW | 1.5kw | 11rpm | 1290N.m | 2.3 |
| RXF97-Y1.5KW | 1.5kw | 12rpm | 1190N.m | 2.5 |
| RXF97-Y1.5KW | 1.5kw | 14rpm | 1050N.m | 2.8 |
| RXF97-Y1.5KW | 1.5kw | 15rpm | 940N.m | 3.2 |
RXF97減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y2.2KW | 2.2kw | 6.5rpm | 3240N.m | 0.9 |
| RXF97-Y2.2KW | 2.2kw | 7.5rpm | 2790N.m | 1.05 |
| RXF97-Y2.2KW | 2.2kw | 8.2rpm | 2550N.m | 1.2 |
| RXF97-Y2.2KW | 2.2kw | 9.3rpm | 2260N.m | 1.35 |
| RXF97-Y2.2KW | 2.2kw | 11rpm | 1900N.m | 1.6 |
| RXF97-Y2.2KW | 2.2kw | 12rpm | 1740N.m | 1.7 |
| RXF97-Y2.2KW | 2.2kw | 14rpm | 1550N.m | 1.95 |
| RXF97-Y2.2KW | 2.2kw | 15rpm | 1380N.m | 2.2 |
| RXF97-Y2.2KW | 2.2kw | 17rpm | 1240N.m | 2.4 |
| RXF97-Y2.2KW | 2.2kw | 19rpm | 1080N.m | 2.8 |
| RXF97-Y2.2KW | 2.2kw | 21rpm | 970N.m | 3.1 |
| RXF97-Y2.2KW | 2.2kw | 23rpm | 890N.m | 3.3 |
| RXF97-Y2.2KW | 2.2kw | 26rpm | 795N.m | 3.8 |
| RXF97-Y2.2KW | 2.2kw | 29rpm | 710N.m | 4.2 |
RXF97減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y3KW | 3kw | 9.3rpm | 3080N.m | 0.95 |
| RXF97-Y3KW | 3kw | 11rpm | 2590N.m | 1.15 |
| RXF97-Y3KW | 3kw | 12rpm | 2380N.m | 1.25 |
| RXF97-Y3KW | 3kw | 14rpm | 2110N.m | 1.4 |
| RXF97-Y3KW | 3kw | 15rpm | 1890N.m | 1.6 |
| RXF97-Y3KW | 3kw | 17rpm | 1700N.m | 1.75 |
| RXF97-Y3KW | 3kw | 19rpm | 1470N.m | 2 |
| RXF97-Y3KW | 3kw | 21rpm | 1330N.m | 2.2 |
| RXF97-Y3KW | 3kw | 23rpm | 1220N.m | 2.4 |
| RXF97-Y3KW | 3kw | 26rpm | 1080N.m | 2.8 |
| RXF97-Y3KW | 3kw | 29rpm | 970N.m | 3.1 |
| RXF97-Y3KW | 3kw | 33rpm | 870N.m | 3.4 |
| RXF97-Y3KW | 3kw | 38rpm | 755N.m | 4 |
| RXF97-Y3KW | 3kw | 42rpm | 680N.m | 4.2 |
RXF97減速機配4KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y4KW | 4kw | 12rpm | 3100N.m | 0.95 |
| RXF97-Y4KW | 4kw | 14rpm | 2750N.m | 1.1 |
| RXF97-Y4KW | 4kw | 16rpm | 2460N.m | 1.25 |
| RXF97-Y4KW | 4kw | 17rpm | 2210N.m | 1.35 |
| RXF97-Y4KW | 4kw | 20rpm | 1920N.m | 1.55 |
| RXF97-Y4KW | 4kw | 22rpm | 1740N.m | 1.75 |
| RXF97-Y4KW | 4kw | 24rpm | 1600N.m | 1.9 |
| RXF97-Y4KW | 4kw | 27rpm | 1420N.m | 2.1 |
| RXF97-Y4KW | 4kw | 30rpm | 1270N.m | 2.4 |
| RXF97-Y4KW | 4kw | 34rpm | 1140N.m | 2.6 |
| RXF97-Y4KW | 4kw | 39rpm | 990N.m | 3.1 |
| RXF97-Y4KW | 4kw | 43rpm | 880N.m | 3.3 |
RXF97減速機配5.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y5.5KW | 5.5kw | 17rpm | 3020N.m | 1 |
| RXF97-Y5.5KW | 5.5kw | 20rpm | 2620N.m | 1.15 |
| RXF97-Y5.5KW | 5.5kw | 22rpm | 2370N.m | 1.25 |
| RXF97-Y5.5KW | 5.5kw | 24rpm | 2170N.m | 1.4 |
| RXF97-Y5.5KW | 5.5kw | 27rpm | 1930N.m | 1.55 |
| RXF97-Y5.5KW | 5.5kw | 30rpm | 1720N.m | 1.75 |
| RXF97-Y5.5KW | 5.5kw | 34rpm | 1550N.m | 1.95 |
| RXF97-Y5.5KW | 5.5kw | 39rpm | 1340N.m | 2.2 |
| RXF97-Y5.5KW | 5.5kw | 43rpm | 1200N.m | 2.4 |
| RXF97-Y5.5KW | 5.5kw | 52rpm | 1000N.m | 2.7 |
| RXF97-Y5.5KW | 5.5kw | 45rpm | 1160N.m | 2.7 |
| RXF97-Y5.5KW | 5.5kw | 53rpm | 980N.m | 2.6 |
| RXF97-Y5.5KW | 5.5kw | 58rpm | 900N.m | 3.1 |
| RXF97-Y5.5KW | 5.5kw | 65rpm | 810N.m | 3.3 |
| RXF97-Y5.5KW | 5.5kw | 72rpm | 730N.m | 3.6 |
| RXF97-Y5.5KW | 5.5kw | 79rpm | 660N.m | 3.8 |
| RXF97-Y5.5KW | 5.5kw | 89rpm | 585N.m | 4.1 |
RXF97減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y7.5KW | 7.5kw | 24rpm | 2970N.m | 1 |
| RXF97-Y7.5KW | 7.5kw | 27rpm | 2630N.m | 1.15 |
| RXF97-Y7.5KW | 7.5kw | 30rpm | 2350N.m | 1.25 |
| RXF97-Y7.5KW | 7.5kw | 34rpm | 2120N.m | 1.4 |
| RXF97-Y7.5KW | 7.5kw | 39rpm | 1840N.m | 1.65 |
| RXF97-Y7.5KW | 7.5kw | 43rpm | 1640N.m | 1.75 |
| RXF97-Y7.5KW | 7.5kw | 52rpm | 1360N.m | 1.95 |
| RXF97-Y7.5KW | 7.5kw | 45rpm | 1580N.m | 1.6 |
| RXF97-Y7.5KW | 7.5kw | 53rpm | 1340N.m | 1.9 |
| RXF97-Y7.5KW | 7.5kw | 58rpm | 1240N.m | 2.3 |
| RXF97-Y7.5KW | 7.5kw | 65rpm | 1100N.m | 2.4 |
| RXF97-Y7.5KW | 7.5kw | 72rpm | 990N.m | 2.6 |
| RXF97-Y7.5KW | 7.5kw | 79rpm | 900N.m | 2.8 |
RXF97減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y11KW | 11kw | 34rpm | 3070N.m | 0.95 |
| RXF97-Y11KW | 11kw | 39rpm | 2670N.m | 1.1 |
| RXF97-Y11KW | 11kw | 44rpm | 2390N.m | 1.2 |
| RXF97-Y11KW | 11kw | 53rpm | 1980N.m | 1.35 |
| RXF97-Y11KW | 11kw | 58rpm | 1800N.m | 1.55 |
| RXF97-Y11KW | 11kw | 65rpm | 1600N.m | 1.7 |
| RXF97-Y11KW | 11kw | 72rpm | 1440N.m | 1.8 |
| RXF97-Y11KW | 11kw | 80rpm | 1310N.m | 1.9 |
| RXF97-Y11KW | 11kw | 90rpm | 1160N.m | 2.1 |
| RXF97-Y11KW | 11kw | 100rpm | 1050N.m | 2.2 |
| RXF97-Y11KW | 11kw | 118rpm | 890N.m | 2.5 |
| RXF97-Y11KW | 11kw | 135rpm | 775N.m | 2.7 |
| RXF97-Y11KW | 11kw | 157rpm | 665N.m | 3 |
| RXF97-Y11KW | 11kw | 174rpm | 600N.m | 3.4 |
| RXF97-Y11KW | 11kw | 205rpm | 510N.m | 3.9 |
| RXF97-Y11KW | 11kw | 235rpm | 445N.m | 4.2 |
RXF97減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y15KW | 15kw | 53rpm | 2710N.m | 1 |
| RXF97-Y15KW | 15kw | 58rpm | 2460N.m | 1.15 |
| RXF97-Y15KW | 15kw | 65rpm | 2200N.m | 1.25 |
| RXF97-Y15KW | 15kw | 72rpm | 1980N.m | 1.35 |
| RXF97-Y15KW | 15kw | 80rpm | 1790N.m | 1.4 |
| RXF97-Y15KW | 15kw | 90rpm | 1590N.m | 1.6 |
| RXF97-Y15KW | 15kw | 100rpm | 1430N.m | 1.6 |
| RXF97-Y15KW | 15kw | 118rpm | 1220N.m | 1.8 |
| RXF97-Y15KW | 15kw | 135rpm | 1060N.m | 1.95 |
| RXF97-Y15KW | 15kw | 157rpm | 910N.m | 2.2 |
| RXF97-Y15KW | 15kw | 174rpm | 820N.m | 2.5 |
| RXF97-Y15KW | 15kw | 205rpm | 700N.m | 2.9 |
| RXF97-Y15KW | 15kw | 235rpm | 610N.m | 3.1 |
RXF97減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y18.5KW | 18.5kw | 72rpm | 2430N.m | 1.05 |
| RXF97-Y18.5KW | 18.5kw | 80rpm | 2200N.m | 1.15 |
| RXF97-Y18.5KW | 18.5kw | 90rpm | 1950N.m | 1.25 |
| RXF97-Y18.5KW | 18.5kw | 100rpm | 1760N.m | 1.3 |
| RXF97-Y18.5KW | 18.5kw | 118rpm | 1490N.m | 1.45 |
| RXF97-Y18.5KW | 18.5kw | 135rpm | 1310N.m | 1.6 |
| RXF97-Y18.5KW | 18.5kw | 157rpm | 1120N.m | 1.8 |
| RXF97-Y18.5KW | 18.5kw | 174rpm | 1010N.m | 2 |
| RXF97-Y18.5KW | 18.5kw | 205rpm | 860N.m | 2.3 |
| RXF97-Y18.5KW | 18.5kw | 235rpm | 750N.m | 2.5 |
| RXF97-Y18.5KW | 18.5kw | 281rpm | 625N.m | 2.8 |
| RXF97-Y18.5KW | 18.5kw | 324rpm | 540N.m | 3 |
RXF97減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y22KW | 22kw | 72rpm | 2890N.m | 0.9 |
| RXF97-Y22KW | 22kw | 80rpm | 2620N.m | 0.95 |
| RXF97-Y22KW | 22kw | 90rpm | 2320N.m | 1.05 |
| RXF97-Y22KW | 22kw | 100rpm | 2100N.m | 1.1 |
| RXF97-Y22KW | 22kw | 118rpm | 1780N.m | 1.25 |
| RXF97-Y22KW | 22kw | 135rpm | 1550N.m | 1.35 |
| RXF97-Y22KW | 22kw | 157rpm | 1330N.m | 1.5 |
| RXF97-Y22KW | 22kw | 174rpm | 1200N.m | 1.7 |
| RXF97-Y22KW | 22kw | 205rpm | 1020N.m | 1.95 |
| RXF97-Y22KW | 22kw | 235rpm | 890N.m | 2.1 |
| RXF97-Y22KW | 22kw | 281rpm | 745N.m | 2.4 |
| RXF97-Y22KW | 22kw | 324rpm | 645N.m | 2.5 |
RXF97減速機配30KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF97-Y30KW | 30kw | 101rpm | 2840N.m | 0.8 |
| RXF97-Y30KW | 30kw | 119rpm | 2410N.m | 0.9 |
| RXF97-Y30KW | 30kw | 136rpm | 2100N.m | 1 |
| RXF97-Y30KW | 30kw | 159rpm | 1800N.m | 1.15 |
| RXF97-Y30KW | 30kw | 176rpm | 1630N.m | 1.25 |
| RXF97-Y30KW | 30kw | 207rpm | 1380N.m | 1.45 |
| RXF97-Y30KW | 30kw | 237rpm | 1210N.m | 1.55 |
| RXF97-Y30KW | 30kw | 284rpm | 1010N.m | 1.75 |
| RXF97-Y30KW | 30kw | 328rpm | 870N.m | 1.85 |
RXF97減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R98減速機
關鍵詞:GRXF向減速電機一體式_硬齒面減速機配電機_RXF系列減速器_RXF系列減速機_GRXF系列減速機_齒輪減速器_硬齒面齒輪減速機_三相齒輪減速電機_RXF型減速機_三相齒輪減速機
RXF系列齒輪減速馬達型號：RXF58減速機,RXF68減速機,RXF78減速機,RXF88減速機,RXF98減速機,RXF108減速機
RXF系列同軸斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RXF98減速機 RXF97硬齒面斜齒輪減速機 RXF97系列減速機 RXF97減速機傳動比 RXF97減速機選型參數 RXF97減速機CAD三維圖
