R78減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑160，負載3.5噸，一分鐘走20米

20米÷（0.16輪子直徑×3.14）=39.8轉每分鐘

3.5噸換算成N=35000N

35000×0.08輪子半徑×0.06摩擦系數=168N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍168×2=336N.m

電機轉數1400÷輸出轉數39.8=35.17比

336N.m輸出扭矩÷35.17比=9.55N.m電機扭矩

9.55N.m電機扭矩?fù)Q算成功率1.51KW以上

對應的R78減速機選型參數：

型號：R78-B1.5KW

減速比：36.83

輸出轉數：39轉每分鐘

輸出扭矩：365N.m

安全系數：2.20

R78減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

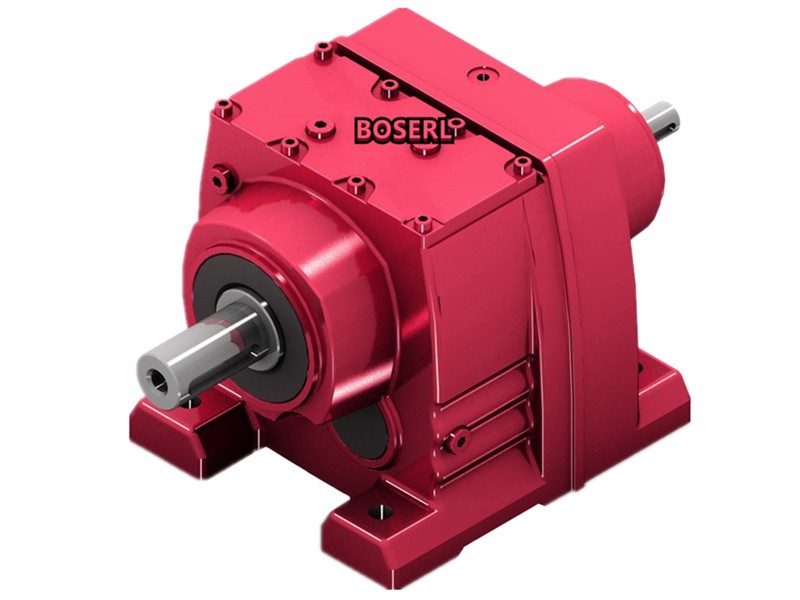

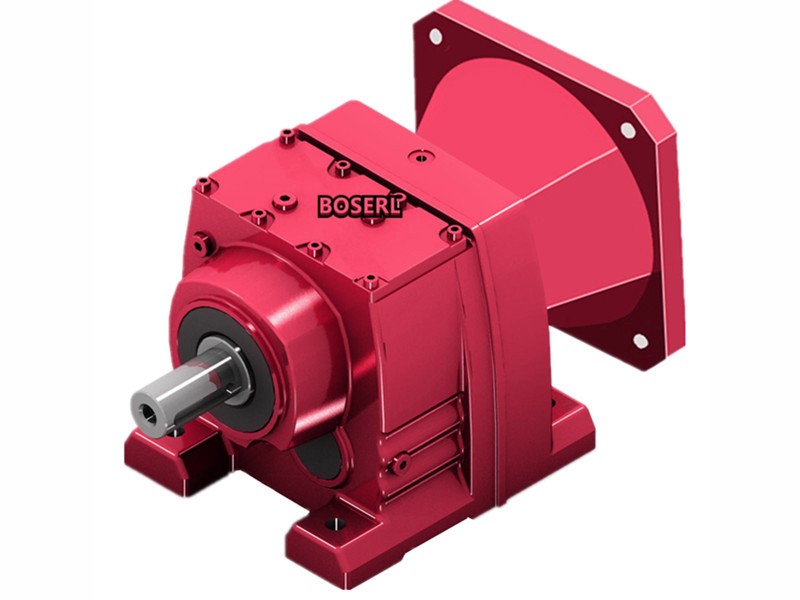

R78臥式硬齒面斜齒輪減速機型號：

R77FDM100L4,R77FDM100LC4,R77FDM100LS4,R77FDM100M4,R77FDM112M4,R77FDM132L4,R77FDM132M4,R77FDM132MC4,R77FDM132ML4,R77FDM132S4,R77FDM160L4,R77FDM160M4,R77FDM160MC4,R77FDM160S4,R77FDM71D4,R77FDM71M4,R77FDM71MS4,R77FDM71S4,R77FDM80K4,R77FDM80M4,R77FDM80MK4,R77FDM80N4,R77FDM80S4,R77FDM90L4,R77FDM90M4,R77FDM90S4,R77FDR100L4,R77FDR100LC4,R77FDR100LS4,R77FDR100M4,R77FDR112M4,R77FDR132L4,R77FDR132M4,R77FDR132MC4,R77FDR132ML4,R77FDR132S4,R77FDR160L4,R77FDR160M4,R77FDR160MC4,R77FDR160S4,R77FDR71D4,R77FDR71M4,R77FDR71MS4,R77FDR71S4,R77FDR80K4,R77FDR80M4,R77FDR80MK4,R77FDR80N4,R77FDR80S4,R77FDR90L4,R77FDR90M4,R77FDR90S4,R77FDRE100L4,R77FDRE100LC4,R77FDRE100LS4,R77FDRE100M4,R77FDRE112M4,R77FDRE132L4,R77FDRE132M4,R77FDRE132MC4,R77FDRE132ML4,R77FDRE132S4,R77FDRE160L4,R77FDRE160M4,R77FDRE160MC4,R77FDRE160S4,R77FDRE71D4,R77FDRE71M4,R77FDRE71MS4,R77FDRE71S4,R77FDRE80K4,R77FDRE80M4,R77FDRE80MK4,R77FDRE80N4,R77FDRE80S4,R77FDRE90L4,R77FDRE90M4,R77FDRE90S4,R77FDRN100L4,R77FDRN100LC4,R77FDRN100LS4,R77FDRN100M4,R77FDRN112M4,R77FDRN132L4,R77FDRN132M4,R77FDRN132MC4,R77FDRN132ML4,R77FDRN132S4,R77FDRN160L4,R77FDRN160M4,R77FDRN160MC4,R77FDRN160S4,R77FDRN71D4,R77FDRN71M4,R77FDRN71MS4,R77FDRN71S4,R77FDRN80K4,R77FDRN80M4,R77FDRN80MK4,R77FDRN80N4,R77FDRN80S4,R77FDRN90L4,R77FDRN90M4,R77FDRN90S4,R77FDRS100L4,R77FDRS100LC4,R77FDRS100LS4,R77FDRS100M4,R77FDRS112M4,R77FDRS132L4,R77FDRS132M4,R77FDRS132MC4,R77FDRS132ML4,R77FDRS132S4,R77FDRS160L4,R77FDRS160M4,R77FDRS160MC4,R77FDRS160S4,R77FDRS71D4,R77FDRS71M4,R77FDRS71MS4,R77FDRS71S4,R77FDRS80K4,R77FDRS80M4,R77FDRS80MK4,R77FDRS80N4,R77FDRS80S4,R77FDRS90L4,R77FDRS90M4,R77FDRS90S4,R77FDT100L4,R77FDT100LC4,R77FDT100LS4,R77FDT100M4,R77FDT112M4,R77FDT132L4,R77FDT132M4,R77FDT132MC4,R77FDT132ML4,R77FDT132S4,R77FDT160L4,R77FDT160M4,R77FDT160MC4,R77FDT160S4,R77FDT71D4,R77FDT71M4,R77FDT71MS4,R77FDT71S4,R77FDT80K4,R77FDT80M4,R77FDT80MK4,R77FDT80N4,R77FDT80S4,R77FDT90L4,R77FDT90M4,R77FDT90S4,R77FDV100L4,R77FDV100LC4,R77FDV100LS4,R77FDV100M4,R77FDV112M4,R77FDV132L4,R77FDV132M4,R77FDV132MC4,R77FDV132ML4,R77FDV132S4,R77FDV160L4,R77FDV160M4,R77FDV160MC4,R77FDV160S4,R77FDV71D4,R77FDV71M4,R77FDV71MS4,R77FDV71S4,R77FDV80K4,R77FDV80M4,R77FDV80MK4,R77FDV80N4,R77FDV80S4,R77FDV90L4,R77FDV90M4,R77FDV90S4,R77FDVE100L4,R77FDVE100LC4,R77FDVE100LS4,R77FDVE100M4,R77FDVE112M4,R77FDVE132L4,R77FDVE132M4,R77FDVE132MC4,R77FDVE132ML4,R77FDVE132S4,R77FDVE160L4,R77FDVE160M4,R77FDVE160MC4,R77FDVE160S4,R77FDVE71D4,R77FDVE71M4,R77FDVE71MS4,R77FDVE71S4,R77FDVE80K4,R77FDVE80M4,R77FDVE80MK4,R77FDVE80N4,R77FDVE80S4,R77FDVE90L4,R77FDVE90M4,R77FDVE90S4,R77F-Y0.18KW,R77F-Y0.25KW,R77F-Y0.37KW,R77F-Y0.55KW,R77F-Y0.75KW,R77F-Y1.1KW,R77F-Y1.5KW,R77F-Y100M4,R77F-Y112M4,R77F-Y11KW,R77F-Y132M4,R77F-Y15KW,R77F-Y160M4,R77F-Y2.2KW,R77F-Y3KW,R77F-Y4KW,R77F-Y5.5KW,R77F-Y7.5KW,R77F-Y71M4,R77F-Y80M4,R77F-Y90M4,R77F-YEJ0.18KW,R77F-YEJ0.25KW,R77F-YEJ0.37KW,R77F-YEJ0.55KW,R77F-YEJ0.75KW,R77F-YEJ1.1KW,R77F-YEJ1.5KW,R77F-YEJ100M4,R77F-YEJ112M4,R77F-YEJ11KW,R77F-YEJ132M4,R77F-YEJ15KW,R77F-YEJ160M4,R77F-YEJ2.2KW,R77F-YEJ3KW,R77F-YEJ4KW,R77F-YEJ5.5KW,R77F-YEJ7.5KW,R77F-YEJ71M4,R77F-YEJ80M4,R77F-YEJ90M4,R77F-YVP0.18KW,R77F-YVP0.25KW,R77F-YVP0.37KW,R77F-YVP0.55KW,R77F-YVP0.75KW,R77F-YVP1.1KW,R77F-YVP1.5KW,R77F-YVP100M4,R77F-YVP112M4,R77F-YVP11KW,R77F-YVP132M4,R77F-YVP15KW,R77F-YVP160M4,R77F-YVP2.2KW,R77F-YVP3KW,R77F-YVP4KW,R77F-YVP5.5KW,R77F-YVP7.5KW,R77F-YVP71M4,R77F-YVP80M4,R77F-YVP90M4,R77F-YVPEJ0.18KW,R77F-YVPEJ0.25KW,R77F-YVPEJ0.37KW,R77F-YVPEJ0.55KW,R77F-YVPEJ0.75KW,R77F-YVPEJ1.1KW,R77F-YVPEJ1.5KW,R77F-YVPEJ100M4,R77F-YVPEJ112M4,R77F-YVPEJ11KW,R77F-YVPEJ132M4,R77F-YVPEJ15KW,R77F-YVPEJ160M4,R77F-YVPEJ2.2KW,R77F-YVPEJ3KW,R77F-YVPEJ4KW,R77F-YVPEJ5.5KW,R77F-YVPEJ7.5KW,R77F-YVPEJ71M4,R77F-YVPEJ80M4,R77F-YVPEJ90M4。

R77系列減速機參數大全：同軸斜齒輪減速電機

R77F減速機配0.18KW電機參數

R77F減速機配0.25KW電機參數

R77F減速機配0.37KW電機參數

R77F減速機配0.55KW電機參數

R77F減速機配0.75KW電機參數

R77F減速機配1.1KW電機參數

R77F減速機配1.5KW電機參數

R77F減速機配2.2KW電機參數

R77F減速機配3KW電機參數

R77F減速機配4KW電機參數

R77F減速機配5.5KW電機參數

R77F減速機配7.5KW電機參數

R77F減速機配11KW電機參數

R78減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R68減速機
