SF38減速電機詳細信息

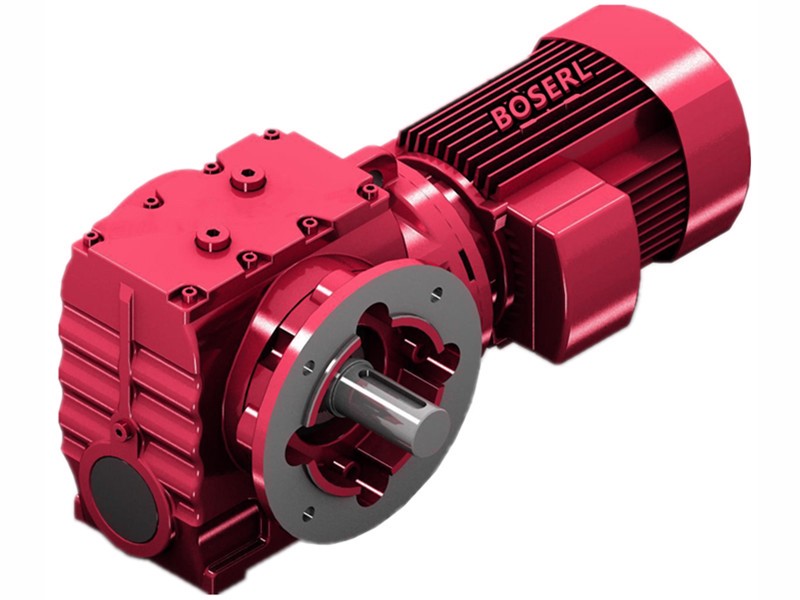

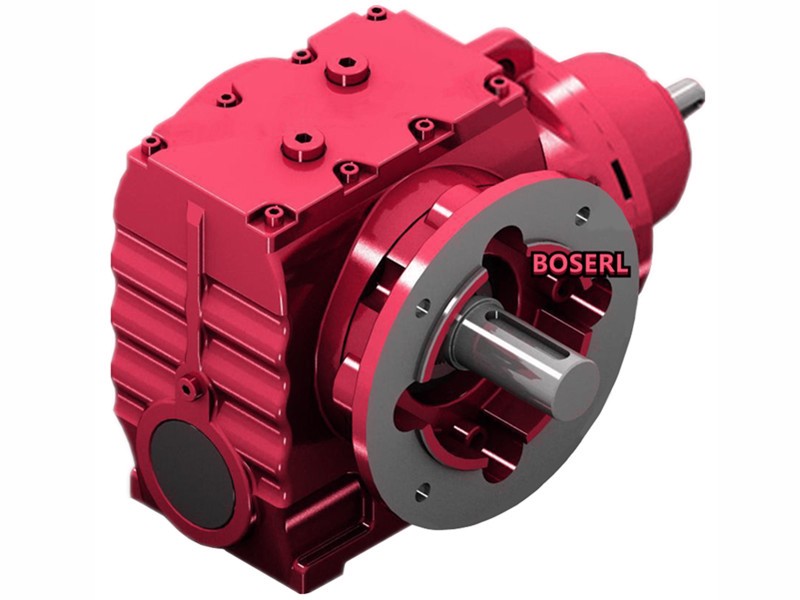

SF38減速電機
訂購熱線：13360667204
SF38減速電機功率計算公式：齒輪減速馬達
廂式電梯參數：滾輪直徑60，負載300kg，每分鐘走110米
110米÷（0.06滾筒直徑X3.14）=583.86轉每分鐘
300kg換算成N=294N.m
294N.m×0.03滾筒半徑=8.82N.m
電機轉數1400÷輸出轉數583.86=2.4比
8.82N.m輸出扭矩÷2.4比=3.68N.m電機扭矩
3.68N.m電機扭矩?fù)Q算成功率0.55KW以上
廂式電梯，我們通常建議用S系列自鎖減速機加剎車電機
對應的SF38減速機型號參數：
型號：SF38-BEJ0.55KW
減速比：6.8
輸出轉數：203轉每分鐘
輸出扭矩：23N.m
安全系數：1.85
SF38減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機蝸輪蝸桿減速機
SF38渦輪渦桿減速機型號：
SF38減速電機型號參數：自鎖減速機
SF38減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| S37Y0.12KW | 157.43 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 144.40 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 122.94 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 106.00 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 98.80 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 86.36 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 80.96 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 71.44 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 63.33 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 55.93 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 51.30 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 43.68 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 37.66 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 35.10 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 30.68 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 28.76 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 25.38 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 22.50 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 19.89 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 18.24 | 0.12KW | 12.5kg | 3000N |
| S37Y0.12KW | 15.53 | 0.12KW | 12.5kg | 2870N |
SF38減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| S37Y0.18KW | 157.43 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 144.40 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 122.94 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 106.00 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 98.80 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 86.36 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 80.96 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 71.44 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 63.33 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 55.93 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 51.30 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 43.68 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 37.66 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 35.10 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 30.68 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 28.76 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 25.38 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 22.50 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 19.89 | 0.18KW | 13kg | 3000N |
| S37Y0.18KW | 18.24 | 0.18KW | 13kg | 2940N |
| S37Y0.18KW | 15.53 | 0.18KW | 13kg | 2810N |
| S37Y0.18KW | 13.39 | 0.18KW | 13kg | 2700N |
| S37Y0.18KW | 12.48 | 0.18KW | 13kg | 2650N |
| S37Y0.18KW | 10.91 | 0.18KW | 13kg | 2550N |
| S37Y0.18KW | 10.23 | 0.18KW | 13kg | 2500N |
SF38減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| S37Y0.25KW | 98.80 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 86.36 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 80.96 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 71.44 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 63.33 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 55.93 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 51.30 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 43.68 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 37.66 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 35.10 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 30.68 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 28.76 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 25.38 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 22.50 | 0.25KW | 17kg | 3000N |
| S37Y0.25KW | 19.89 | 0.25KW | 17kg | 2870N |
| S37Y0.25KW | 18.24 | 0.25KW | 17kg | 2820N |
| S37Y0.25KW | 15.53 | 0.25KW | 17kg | 2710N |
| S37Y0.25KW | 13.39 | 0.25KW | 17kg | 2620N |
| S37Y0.25KW | 12.48 | 0.25KW | 17kg | 2570N |
| S37Y0.25KW | 10.91 | 0.25KW | 17kg | 2480N |
| S37Y0.25KW | 10.23 | 0.25KW | 17kg | 2440N |
| S37Y0.25KW | 9.02 | 0.25KW | 17kg | 2360N |
| S37Y0.25KW | 8.00 | 0.25KW | 17kg | 2280N |
| S37Y0.25KW | 6.80 | 0.25KW | 17kg | 2180N |
SF38減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| S37Y0.37KW | 63.33 | 0.37KW | 17.5kg | 3000N |
| S37Y0.37KW | 51.30 | 0.37KW | 17.5kg | 3000N |
| S37Y0.37KW | 43.68 | 0.37KW | 17.5kg | 3000N |
| S37Y0.37KW | 37.66 | 0.37KW | 17.5kg | 3000N |
| S37Y0.37KW | 35.10 | 0.37KW | 17.5kg | 3000N |
| S37Y0.37KW | 30.68 | 0.37KW | 17.5kg | 3000N |
| S37Y0.37KW | 28.76 | 0.37KW | 17.5kg | 3000N |
| S37Y0.37KW | 25.38 | 0.37KW | 17.5kg | 2940N |
| S37Y0.37KW | 22.50 | 0.37KW | 17.5kg | 2870N |
| S37Y0.37KW | 19.89 | 0.37KW | 17.5kg | 2610N |
| S37Y0.37KW | 18.24 | 0.37KW | 17.5kg | 2570N |
| S37Y0.37KW | 15.53 | 0.37KW | 17.5kg | 2500N |
| S37Y0.37KW | 13.39 | 0.37KW | 17.5kg | 2420N |
| S37Y0.37KW | 12.48 | 0.37KW | 17.5kg | 2390N |
| S37Y0.37KW | 10.91 | 0.37KW | 17.5kg | 2320N |
| S37Y0.37KW | 10.23 | 0.37KW | 17.5kg | 2280N |
| S37Y0.37KW | 9.02 | 0.37KW | 17.5kg | 2220N |
| S37Y0.37KW | 8.00 | 0.37KW | 17.5kg | 2150N |
| S37Y0.37KW | 6.80 | 0.37KW | 17.5kg | 2070N |
SF38減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| S37Y0.55KW | 30.68 | 0.55KW | 22kg | 2680N |
| S37Y0.55KW | 28.76 | 0.55KW | 22kg | 2660N |
| S37Y0.55KW | 25.38 | 0.55KW | 22kg | 2630N |
| S37Y0.55KW | 22.50 | 0.55KW | 22kg | 2590N |
| S37Y0.55KW | 15.53 | 0.55KW | 22kg | 2230N |
| S37Y0.55KW | 13.39 | 0.55KW | 22kg | 2190N |
| S37Y0.55KW | 19.13 | 0.55KW | 22kg | 2530N |
| S37Y0.55KW | 12.48 | 0.55KW | 22kg | 2170N |
| S37Y0.55KW | 10.91 | 0.55KW | 22kg | 2130N |
| S37Y0.55KW | 10.23 | 0.55KW | 22kg | 2110N |
| S37Y0.55KW | 9.02 | 0.55KW | 22kg | 2060N |
| S37Y0.55KW | 8.00 | 0.55KW | 22kg | 2010N |
| S37Y0.55KW | 6.80 | 0.55KW | 22kg | 1950N |
SF38減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| S37Y0.75KW | 19.13 | 0.75KW | 23kg | 2260N |
| S37Y0.75KW | 12.48 | 0.75KW | 23kg | 1930N |
| S37Y0.75KW | 10.91 | 0.75KW | 23kg | 1910N |
| S37Y0.75KW | 10.23 | 0.75KW | 23kg | 1900N |
| S37Y0.75KW | 9.02 | 0.75KW | 23kg | 1880N |
| S37Y0.75KW | 8.00 | 0.75KW | 23kg | 1850N |
| S37Y0.75KW | 6.80 | 0.75KW | 23kg | 1800N |
SF38減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| S37Y1.1KW | 8.00 | 1.1KW | 27kg | 1580N |
| S37Y1.1KW | 6.80 | 1.1KW | 27kg | 1580N |
| S37Y1.1KW | 13.39 | 1.1KW | 27kg | 1580N |
| S37Y1.1KW | 12.48 | 1.1KW | 27kg | 1570N |
| S37Y1.1KW | 10.91 | 1.1KW | 27kg | 1560N |
| S37Y1.1KW | 10.23 | 1.1KW | 27kg | 1550N |
| S37Y1.1KW | 9.02 | 1.1KW | 27kg | 1520N |
| S37Y1.1KW | 8.00 | 1.1KW | 27kg | 1500N |
| S37Y1.1KW | 6.8 | 1.1KW | 27kg | 1460N |
SF38減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| S37Y1.5KW | 9.02 | 1.5KW | 30kg | 1350N |
| S37Y1.5KW | 8.00 | 1.5KW | 30kg | 1350N |
| S37Y1.5KW | 6.80 | 1.5KW | 30kg | 1330N |
SF38減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：S38減速機
關鍵詞:GSF系列減速機配電機一體式_蝸輪蝸桿減速機制造廠家_伺服電機蝸輪蝸桿減速機_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器
SF系列減速機型號：SF38減速機,SF48減速機,SF58減速機,SF68減速機,SF78減速機,SF88減速機,SF98齒輪減速馬達
SF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: SF38減速電機 SF37渦輪渦桿減速機 SF37減速機功率 SF37減速機基座尺寸 SF37減速機模型 SF37減速機型號參數
