RF138減速機詳細信息

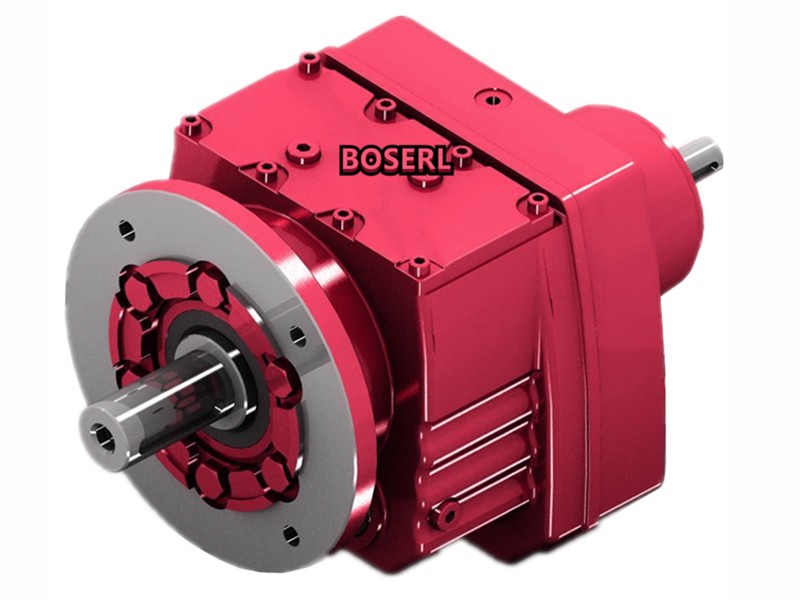

RF138減速機
訂購熱線：13360667204
RF138減速機傳動比計算：齒輪減速馬達
傳送帶參數：齒輪直徑320，傳送28噸，傳送一分鐘13米
13米÷（0.32齒輪直徑X3.14）=12.94轉每分鐘
28噸換算成N=280000N
280000×0.16齒輪半徑×0.06摩擦系數=2688N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍2688×2=5376N.m
電機轉數1400÷輸出轉數12.94=108.19比
2688N.m輸出扭矩÷108.19比=24.85N.m電機扭矩
24.85N.m電機扭矩換算成功率3.94KW左右
對應的RF138減速機選型參數：
型號：RF138-BEJ5.5KW
減速比：113.72
輸出轉數：13轉每分鐘
輸出扭矩：4100N.m
安全系數：1.95
RF138減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機

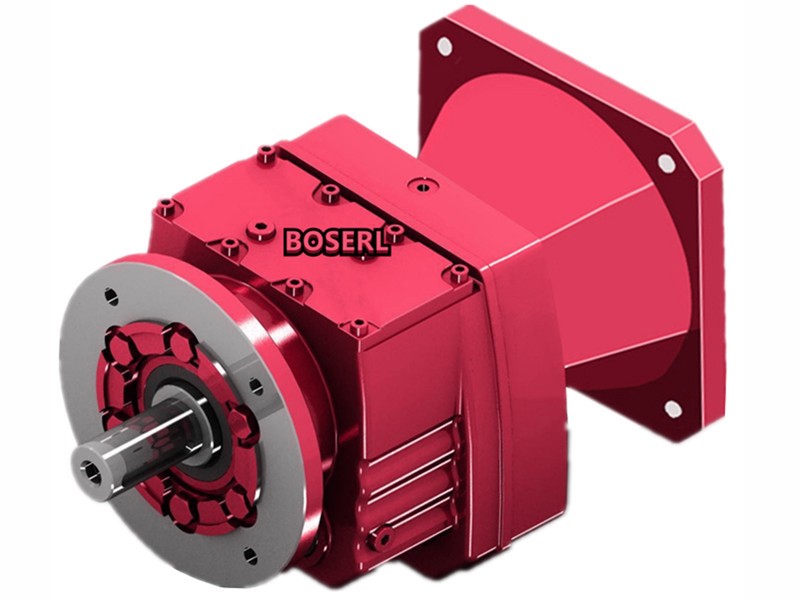

RF138立式硬齒面斜齒輪減速機型號：
RF137系列減速機參數大全：同軸斜齒輪減速電機
RF137減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y5.5KW | 7.5kw | 7.7rpm | 9340N.m | 0.85 |
| RF137-Y5.5KW | 7.5kw | 8.3rpm | 8640N.m | 0.95 |
| RF137-Y5.5KW | 7.5kw | 9.2rpm | 7740N.m | 1.05 |
| RF137-Y5.5KW | 7.5kw | 10rpm | 6990N.m | 1.15 |
| RF137-Y5.5KW | 7.5kw | 11rpm | 6350N.m | 1.25 |
| RF137-Y5.5KW | 7.5kw | 13rpm | 5630N.m | 1.4 |
| RF137-Y5.5KW | 7.5kw | 14rpm | 5110N.m | 1.55 |
| RF137-Y5.5KW | 7.5kw | 16rpm | 4390N.m | 1.8 |
| RF137-Y5.5KW | 7.5kw | 18rpm | 4010N.m | 2 |
| RF137-Y5.5KW | 7.5kw | 20rpm | 3640N.m | 2.2 |
| RF137-Y5.5KW | 7.5kw | 22rpm | 3230N.m | 2.5 |
| RF137-Y5.5KW | 7.5kw | 24rpm | 2930N.m | 2.7 |
| RF137-Y5.5KW | 7.5kw | 28rpm | 2520N.m | 3.2 |
RF137減速機配7.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y7.5KW | 7.5kw | 7.7rpm | 9340N.m | 0.85 |
| RF137-Y7.5KW | 7.5kw | 8.3rpm | 8640N.m | 0.95 |
| RF137-Y7.5KW | 7.5kw | 9.2rpm | 7740N.m | 1.05 |
| RF137-Y7.5KW | 7.5kw | 10rpm | 6990N.m | 1.15 |
| RF137-Y7.5KW | 7.5kw | 11rpm | 6350N.m | 1.25 |
| RF137-Y7.5KW | 7.5kw | 13rpm | 5630N.m | 1.4 |
| RF137-Y7.5KW | 7.5kw | 14rpm | 5110N.m | 1.55 |
| RF137-Y7.5KW | 7.5kw | 16rpm | 4390N.m | 1.8 |
| RF137-Y7.5KW | 7.5kw | 18rpm | 4010N.m | 2 |
| RF137-Y7.5KW | 7.5kw | 20rpm | 3640N.m | 2.2 |
| RF137-Y7.5KW | 7.5kw | 22rpm | 3230N.m | 2.5 |
| RF137-Y7.5KW | 7.5kw | 24rpm | 2930N.m | 2.7 |
| RF137-Y7.5KW | 7.5kw | 28rpm | 2520N.m | 3.2 |
RF137減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y11KW | 11kw | 10rpm | 10100N.m | 0.8 |
| RF137-Y11KW | 11kw | 11rpm | 9220N.m | 0.85 |
| RF137-Y11KW | 11kw | 13rpm | 8180N.m | 1 |
| RF137-Y11KW | 11kw | 14rpm | 7420N.m | 1.1 |
| RF137-Y11KW | 11kw | 16rpm | 6380N.m | 1.25 |
| RF137-Y11KW | 11kw | 18rpm | 5820N.m | 1.35 |
| RF137-Y11KW | 11kw | 20rpm | 5280N.m | 1.5 |
| RF137-Y11KW | 11kw | 22rpm | 4690N.m | 1.7 |
| RF137-Y11KW | 11kw | 25rpm | 4250N.m | 1.9 |
| RF137-Y11KW | 11kw | 29rpm | 3650N.m | 2.2 |
| RF137-Y11KW | 11kw | 33rpm | 3190N.m | 2.5 |
| RF137-Y11KW | 11kw | 39rpm | 2700N.m | 3 |
| RF137-Y11KW | 11kw | 44rpm | 2360N.m | 3.4 |
RF137減速機配15KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y15KW | 15kw | 14rpm | 10100N.m | 0.8 |
| RF137-Y15KW | 15kw | 16rpm | 8700N.m | 0.9 |
| RF137-Y15KW | 15kw | 18rpm | 7940N.m | 1 |
| RF137-Y15KW | 15kw | 20rpm | 7210N.m | 1.1 |
| RF137-Y15KW | 15kw | 22rpm | 6400N.m | 1.25 |
| RF137-Y15KW | 15kw | 25rpm | 5800N.m | 1.4 |
| RF137-Y15KW | 15kw | 29rpm | 4990N.m | 1.6 |
| RF137-Y15KW | 15kw | 33rpm | 4360N.m | 1.85 |
| RF137-Y15KW | 15kw | 39rpm | 3690N.m | 2.2 |
| RF137-Y15KW | 15kw | 44rpm | 3230N.m | 2.5 |
| RF137-Y15KW | 15kw | 52rpm | 2730N.m | 2.8 |
RF137減速機配18.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y18.5KW | 15kw | 14rpm | 10100N.m | 0.8 |
| RF137-Y18.5KW | 15kw | 16rpm | 8700N.m | 0.9 |
| RF137-Y18.5KW | 15kw | 18rpm | 7940N.m | 1 |
| RF137-Y18.5KW | 15kw | 20rpm | 7210N.m | 1.1 |
| RF137-Y18.5KW | 15kw | 22rpm | 6400N.m | 1.25 |
| RF137-Y18.5KW | 15kw | 25rpm | 5800N.m | 1.4 |
| RF137-Y18.5KW | 15kw | 29rpm | 4990N.m | 1.6 |
| RF137-Y18.5KW | 15kw | 33rpm | 4360N.m | 1.85 |
| RF137-Y18.5KW | 15kw | 39rpm | 3690N.m | 2.2 |
| RF137-Y18.5KW | 15kw | 44rpm | 3230N.m | 2.5 |
| RF137-Y18.5KW | 15kw | 52rpm | 2730N.m | 2.8 |
RF137減速機配22KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y22KW | 22kw | 22rpm | 9380N.m | 0.85 |
| RF137-Y22KW | 22kw | 25rpm | 8510N.m | 0.95 |
| RF137-Y22KW | 22kw | 29rpm | 7310N.m | 1.1 |
| RF137-Y22KW | 22kw | 33rpm | 6390N.m | 1.25 |
| RF137-Y22KW | 22kw | 39rpm | 5410N.m | 1.5 |
| RF137-Y22KW | 22kw | 44rpm | 4730N.m | 1.7 |
| RF137-Y22KW | 22kw | 52rpm | 4000N.m | 1.9 |
| RF137-Y22KW | 22kw | 49rpm | 4250N.m | 1.85 |
| RF137-Y22KW | 22kw | 61rpm | 3470N.m | 2.3 |
| RF137-Y22KW | 22kw | 66rpm | 3160N.m | 2.5 |
| RF137-Y22KW | 22kw | 77rpm | 2730N.m | 2.9 |
| RF137-Y22KW | 22kw | 87rpm | 2410N.m | 3.3 |
| RF137-Y22KW | 22kw | 101rpm | 2080N.m | 3.8 |
| RF137-Y22KW | 22kw | 114rpm | 1840N.m | 4.3 |
RF137減速機配30KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y30KW | 30kw | 29rpm | 9880N.m | 0.8 |
| RF137-Y30KW | 30kw | 33rpm | 8620N.m | 0.95 |
| RF137-Y30KW | 30kw | 39rpm | 7310N.m | 1.1 |
| RF137-Y30KW | 30kw | 44rpm | 6390N.m | 1.25 |
| RF137-Y30KW | 30kw | 53rpm | 5400N.m | 1.4 |
| RF137-Y30KW | 30kw | 61rpm | 4690N.m | 1.7 |
| RF137-Y30KW | 30kw | 67rpm | 4270N.m | 1.85 |
| RF137-Y30KW | 30kw | 77rpm | 3700N.m | 2.2 |
| RF137-Y30KW | 30kw | 88rpm | 3260N.m | 2.5 |
| RF137-Y30KW | 30kw | 102rpm | 2820N.m | 2.8 |
| RF137-Y30KW | 30kw | 115rpm | 2490N.m | 3.2 |
| RF137-Y30KW | 30kw | 137rpm | 2090N.m | 3.8 |
| RF137-Y30KW | 30kw | 194rpm | 1470N.m | 3.5 |
| RF137-Y30KW | 30kw | 231rpm | 1240N.m | 4.1 |
RF137減速機配37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y37KW | 37kw | 39rpm | 9050N.m | 0.9 |
| RF137-Y37KW | 37kw | 45rpm | 7910N.m | 1 |
| RF137-Y37KW | 37kw | 53rpm | 6680N.m | 1.15 |
| RF137-Y37KW | 37kw | 61rpm | 5790N.m | 1.4 |
| RF137-Y37KW | 37kw | 67rpm | 5280N.m | 1.5 |
| RF137-Y37KW | 37kw | 77rpm | 4570N.m | 1.75 |
| RF137-Y37KW | 37kw | 88rpm | 4030N.m | 2 |
| RF137-Y37KW | 37kw | 101rpm | 3480N.m | 2.3 |
| RF137-Y37KW | 37kw | 115rpm | 3080N.m | 2.6 |
| RF137-Y37KW | 37kw | 136rpm | 2590N.m | 3.1 |
| RF137-Y37KW | 37kw | 169rpm | 2090N.m | 3.7 |
| RF137-Y37KW | 37kw | 194rpm | 1820N.m | 2.8 |
| RF137-Y37KW | 37kw | 230rpm | 1530N.m | 3.3 |
| RF137-Y37KW | 37kw | 285rpm | 1230N.m | 3.7 |
RF137減速機配45KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y45KW | 45kw | 45rpm | 9550N.m | 0.85 |
| RF137-Y45KW | 45kw | 53rpm | 8070N.m | 0.95 |
| RF137-Y45KW | 45kw | 61rpm | 7000N.m | 1.15 |
| RF137-Y45KW | 45kw | 67rpm | 6380N.m | 1.25 |
| RF137-Y45KW | 45kw | 77rpm | 5520N.m | 1.45 |
| RF137-Y45KW | 45kw | 88rpm | 4870N.m | 1.65 |
| RF137-Y45KW | 45kw | 101rpm | 4210N.m | 1.9 |
| RF137-Y45KW | 45kw | 115rpm | 3720N.m | 2.2 |
| RF137-Y45KW | 45kw | 136rpm | 3130N.m | 2.6 |
| RF137-Y45KW | 45kw | 169rpm | 2520N.m | 3.1 |
| RF137-Y45KW | 45kw | 194rpm | 2200N.m | 2.3 |
| RF137-Y45KW | 45kw | 230rpm | 1850N.m | 2.8 |
| RF137-Y45KW | 45kw | 285rpm | 1490N.m | 3.1 |
RF137減速機配55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF137-Y55KW | 55kw | 77rpm | 6770N.m | 1.2 |
| RF137-Y55KW | 55kw | 88rpm | 5980N.m | 1.35 |
| RF137-Y55KW | 55kw | 101rpm | 5160N.m | 1.55 |
| RF137-Y55KW | 55kw | 115rpm | 4560N.m | 1.75 |
| RF137-Y55KW | 55kw | 136rpm | 3840N.m | 2.1 |
| RF137-Y55KW | 55kw | 169rpm | 3100N.m | 2.5 |
| RF137-Y55KW | 55kw | 194rpm | 2700N.m | 1.9 |
| RF137-Y55KW | 55kw | 230rpm | 2270N.m | 2.2 |
| RF137-Y55KW | 55kw | 285rpm | 1830N.m | 2.5 |
RF18減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R138減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RF138減速機 RF137立式硬齒面斜齒輪減速機 RF137系列減速機 RF137減速機傳動比 RF137減速機選型參數 RF137減速機CAD三維圖
