K38減速電機詳細信息

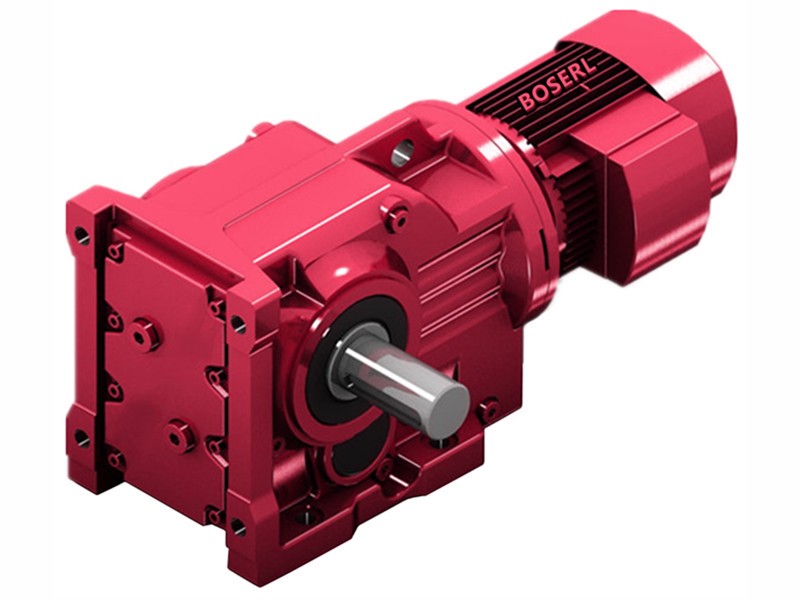

K38減速電機
訂購熱線：13360667204
K38減速電機選型計算：齒輪減速馬達
藥材攪拌器參數：攪拌藥材150kg，一分鐘攪動155圈，攪拌葉輪直徑55
電機轉數1400÷155圈（輸出轉速）=減速比9.03
攪拌150kg藥材=1470N
1470N×0.0275葉輪半徑=40.42×2攪拌水狀物料扭矩放大兩倍=80.85N.m
80.85N.m÷9.03減速比=8.95N.m電機扭矩
8.95N.m電機扭矩換算成功率1.42KW以上
對應的K38減速機選型參數：
型號：K38-B1.5KW
減速比：8.91
輸出轉數：160轉每分鐘
輸出扭矩：89N.m
安全系數：1.8

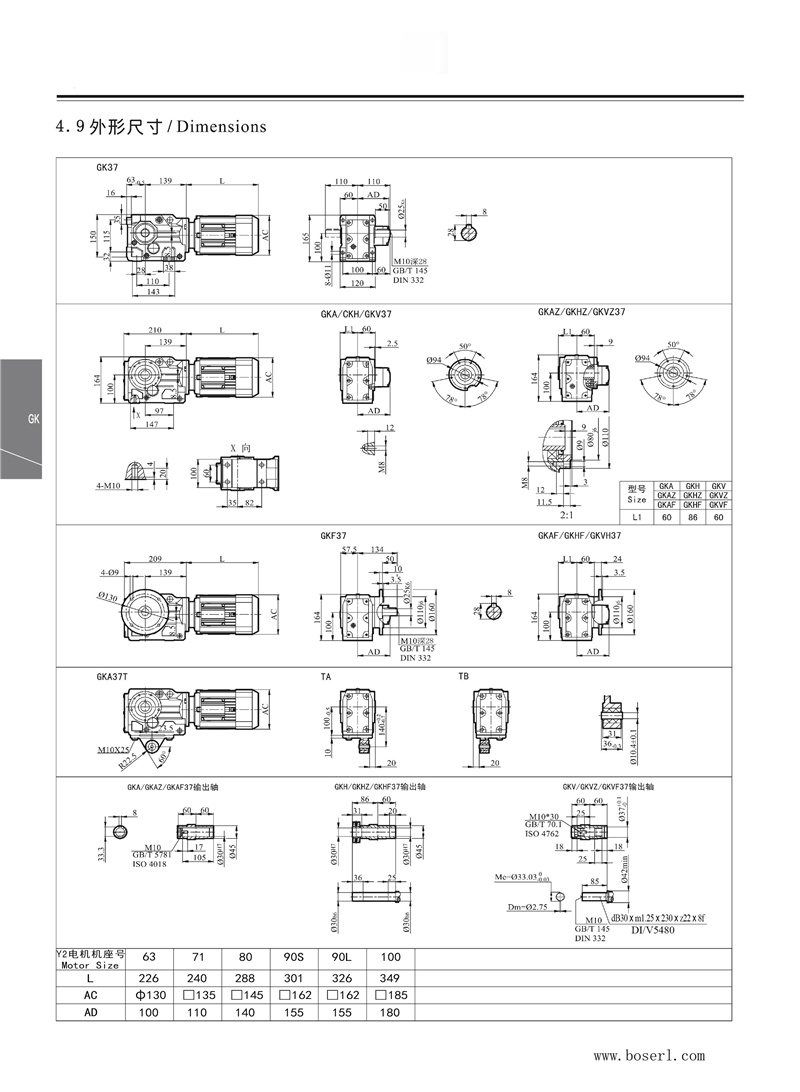

K38減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）K系列減速機

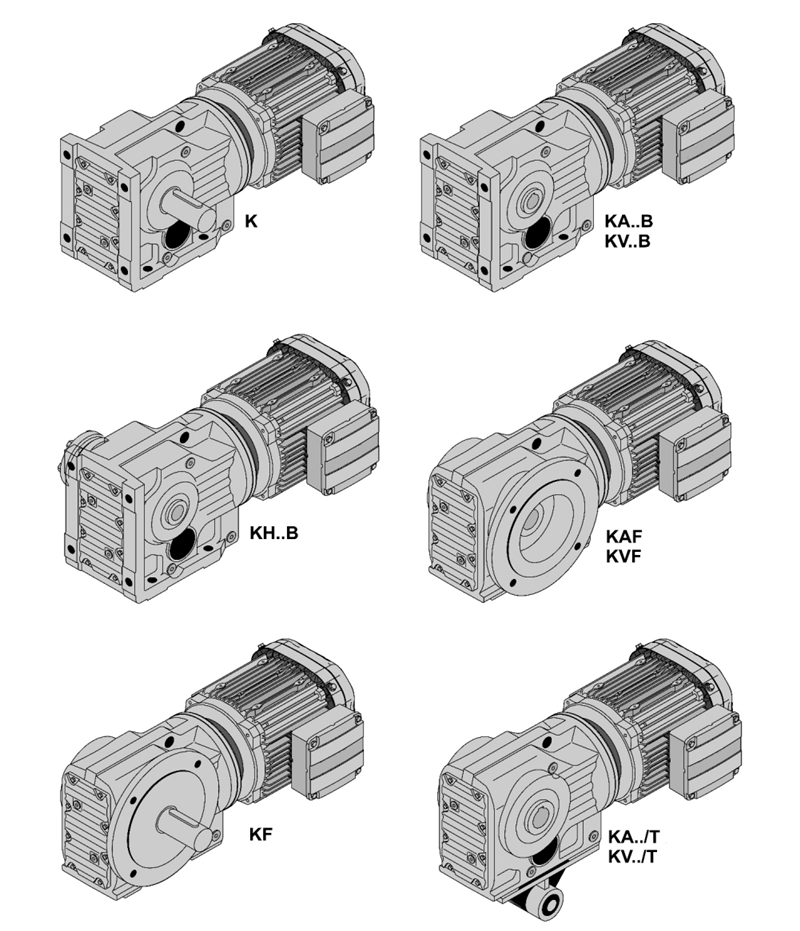

K38直角齒輪減速機型號：

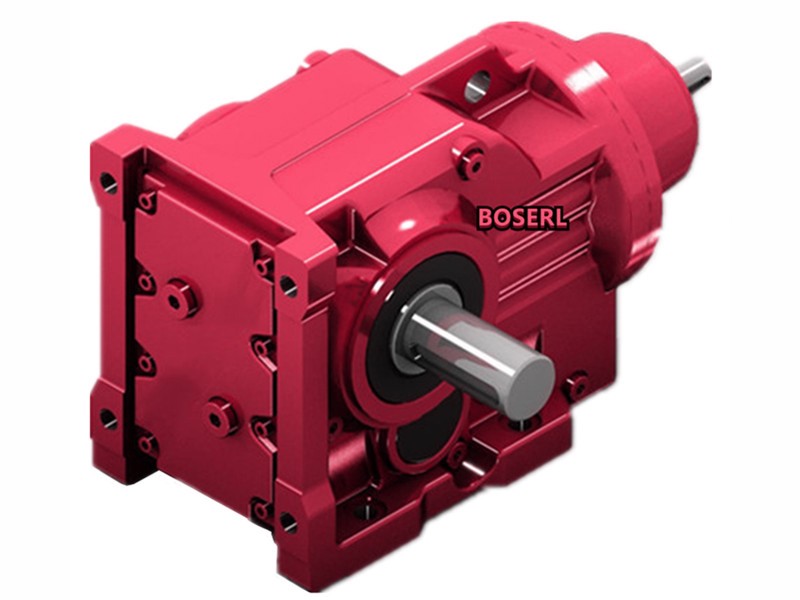

K38減速電機型號參數：直角減速機
K38減速機配0.12KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y0.12KW | 0.12kw | 13rpm | 88N.m | 2.3 |
| K37Y0.12KW | 0.12kw | 14rpm | 81N.m | 2.5 |
| K37Y0.12KW | 0.12kw | 16rpm | 70N.m | 2.9 |
| K37Y0.12KW | 0.12kw | 19rpm | 60N.m | 3.3 |
| K37Y0.12KW | 0.12kw | 20rpm | 56N.m | 3.6 |
| K37Y0.12KW | 0.12kw | 24rpm | 49N.m | 4.1 |
| K37Y0.12KW | 0.12kw | 28rpm | 41N.m | 4.8 |
| K37Y0.12KW | 0.12kw | 31rpm | 37N.m | 5.4 |
| K37Y0.12KW | 0.12kw | 36rpm | 32N.m | 6.4 |
| K37Y0.12KW | 0.12kw | 39rpm | 30N.m | 6.8 |
| K37Y0.12KW | 0.12kw | 46rpm | 25N.m | 8 |
| K37Y0.12KW | 0.12kw | 48rpm | 24N.m | 8.4 |
| K37Y0.12KW | 0.12kw | 55rpm | 21N.m | 9.6 |
| K37Y0.12KW | 0.12kw | 59rpm | 19N.m | 10 |
| K37Y0.12KW | 0.12kw | 68rpm | 17N.m | 11 |
| K37Y0.12KW | 0.12kw | 80rpm | 14N.m | 13 |
| K37Y0.12KW | 0.12kw | 90rpm | 13N.m | 14 |
| K37Y0.12KW | 0.12kw | 105rpm | 11N.m | 15 |
| K37Y0.12KW | 0.12kw | 114rpm | 10N.m | 16 |
K38減速機配0.18KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y0.18KW | 0.18kw | 12rpm | 138N.m | 1.45 |
| K37Y0.18KW | 0.18kw | 14rpm | 127N.m | 1.55 |
| K37Y0.18KW | 0.18kw | 16rpm | 108N.m | 1.85 |
| K37Y0.18KW | 0.18kw | 18rpm | 94N.m | 2.1 |
| K37Y0.18KW | 0.18kw | 19rpm | 88N.m | 2.3 |
| K37Y0.18KW | 0.18kw | 23rpm | 76N.m | 2.6 |
| K37Y0.18KW | 0.18kw | 27rpm | 65N.m | 3.1 |
| K37Y0.18KW | 0.18kw | 30rpm | 58N.m | 3.4 |
| K37Y0.18KW | 0.18kw | 35rpm | 49N.m | 4 |
| K37Y0.18KW | 0.18kw | 37rpm | 46N.m | 4.3 |
| K37Y0.18KW | 0.18kw | 44rpm | 39N.m | 5.1 |
| K37Y0.18KW | 0.18kw | 46rpm | 38N.m | 5.3 |
| K37Y0.18KW | 0.18kw | 53rpm | 32N.m | 6.2 |
| K37Y0.18KW | 0.18kw | 57rpm | 30N.m | 6.4 |
| K37Y0.18KW | 0.18kw | 65rpm | 26N.m | 7 |
| K37Y0.18KW | 0.18kw | 77rpm | 22N.m | 8.1 |
| K37Y0.18KW | 0.18kw | 86rpm | 20N.m | 8.8 |
| K37Y0.18KW | 0.18kw | 101rpm | 17N.m | 9.7 |
| K37Y0.18KW | 0.18kw | 109rpm | 16N.m | 10 |
| K37Y0.18KW | 0.18kw | 126rpm | 14N.m | 12 |
| K37Y0.18KW | 0.18kw | 148rpm | 12N.m | 14 |
| K37Y0.18KW | 0.18kw | 166rpm | 10N.m | 15 |
K38減速機配0.25KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y0.25KW | 0.25kw | 12rpm | 195N.m | 1 |
| K37Y0.25KW | 0.25kw | 13rpm | 180N.m | 1.1 |
| K37Y0.25KW | 0.25kw | 16rpm | 154N.m | 1.3 |
| K37Y0.25KW | 0.25kw | 18rpm | 133N.m | 1.5 |
| K37Y0.25KW | 0.25kw | 19rpm | 124N.m | 1.6 |
| K37Y0.25KW | 0.25kw | 22rpm | 108N.m | 1.85 |
| K37Y0.25KW | 0.25kw | 26rpm | 91N.m | 2.2 |
| K37Y0.25KW | 0.25kw | 29rpm | 82N.m | 2.4 |
| K37Y0.25KW | 0.25kw | 34rpm | 70N.m | 2.9 |
| K37Y0.25KW | 0.25kw | 37rpm | 65N.m | 3.1 |
| K37Y0.25KW | 0.25kw | 43rpm | 55N.m | 3.6 |
| K37Y0.25KW | 0.25kw | 45rpm | 53N.m | 3.8 |
| K37Y0.25KW | 0.25kw | 52rpm | 46N.m | 4.4 |
| K37Y0.25KW | 0.25kw | 56rpm | 43N.m | 4.6 |
| K37Y0.25KW | 0.25kw | 64rpm | 37N.m | 5 |
| K37Y0.25KW | 0.25kw | 76rpm | 32N.m | 5.7 |
| K37Y0.25KW | 0.25kw | 85rpm | 28N.m | 6.2 |
| K37Y0.25KW | 0.25kw | 99rpm | 24N.m | 6.9 |
| K37Y0.25KW | 0.25kw | 107rpm | 22N.m | 7.2 |
| K37Y0.25KW | 0.25kw | 124rpm | 19N.m | 8.3 |
| K37Y0.25KW | 0.25kw | 146rpm | 16N.m | 9.8 |
| K37Y0.25KW | 0.25kw | 163rpm | 15N.m | 11 |
| K37Y0.25KW | 0.25kw | 191rpm | 12N.m | 12 |
| K37Y0.25KW | 0.25kw | 204rpm | 12N.m | 12 |
K38減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y0.37KW | 0.37kw | 14rpm | 250N.m | 0.8 |
| K37Y0.37KW | 0.37kw | 16rpm | 210N.m | 0.95 |
| K37Y0.37KW | 0.37kw | 19rpm | 186N.m | 1.1 |
| K37Y0.37KW | 0.37kw | 20rpm | 174N.m | 1.15 |
| K37Y0.37KW | 0.37kw | 24rpm | 150N.m | 1.35 |
| K37Y0.37KW | 0.37kw | 28rpm | 128N.m | 1.55 |
| K37Y0.37KW | 0.37kw | 31rpm | 114N.m | 1.75 |
| K37Y0.37KW | 0.37kw | 36rpm | 97N.m | 2.1 |
| K37Y0.37KW | 0.37kw | 39rpm | 91N.m | 2.2 |
| K37Y0.37KW | 0.37kw | 46rpm | 77N.m | 2.6 |
| K37Y0.37KW | 0.37kw | 48rpm | 74N.m | 2.7 |
| K37Y0.37KW | 0.37kw | 55rpm | 64N.m | 3.1 |
| K37Y0.37KW | 0.37kw | 59rpm | 60N.m | 3.3 |
| K37Y0.37KW | 0.37kw | 68rpm | 52N.m | 3.6 |
| K37Y0.37KW | 0.37kw | 80rpm | 44N.m | 4.1 |
| K37Y0.37KW | 0.37kw | 90rpm | 39N.m | 4.5 |
| K37Y0.37KW | 0.37kw | 105rpm | 34N.m | 4.9 |
| K37Y0.37KW | 0.37kw | 114rpm | 31N.m | 5.1 |
| K37Y0.37KW | 0.37kw | 132rpm | 27N.m | 6 |
| K37Y0.37KW | 0.37kw | 155rpm | 23N.m | 7 |
| K37Y0.37KW | 0.37kw | 173rpm | 20N.m | 7.6 |
| K37Y0.37KW | 0.37kw | 203rpm | 17N.m | 8.6 |
| K37Y0.37KW | 0.37kw | 217rpm | 16N.m | 8.9 |
| K37Y0.37KW | 0.37kw | 257rpm | 14N.m | 10 |
K38減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y0.55KW | 0.55kw | 24rpm | 220N.m | 0.9 |
| K37Y0.55KW | 0.55kw | 28rpm | 190N.m | 1.05 |
| K37Y0.55KW | 0.55kw | 31rpm | 169N.m | 1.2 |
| K37Y0.55KW | 0.55kw | 36rpm | 144N.m | 1.4 |
| K37Y0.55KW | 0.55kw | 39rpm | 135N.m | 1.5 |
| K37Y0.55KW | 0.55kw | 46rpm | 114N.m | 1.75 |
| K37Y0.55KW | 0.55kw | 48rpm | 110N.m | 1.8 |
| K37Y0.55KW | 0.55kw | 55rpm | 95N.m | 2.1 |
| K37Y0.55KW | 0.55kw | 59rpm | 89N.m | 2.2 |
| K37Y0.55KW | 0.55kw | 68rpm | 77N.m | 2.4 |
| K37Y0.55KW | 0.55kw | 80rpm | 65N.m | 2.8 |
| K37Y0.55KW | 0.55kw | 90rpm | 58N.m | 3 |
| K37Y0.55KW | 0.55kw | 105rpm | 50N.m | 3.3 |
| K37Y0.55KW | 0.55kw | 114rpm | 46N.m | 3.5 |
| K37Y0.55KW | 0.55kw | 132rpm | 40N.m | 4 |
| K37Y0.55KW | 0.55kw | 155rpm | 34N.m | 4.7 |
| K37Y0.55KW | 0.55kw | 173rpm | 30N.m | 5.1 |
| K37Y0.55KW | 0.55kw | 203rpm | 26N.m | 5.8 |
| K37Y0.55KW | 0.55kw | 217rpm | 24N.m | 6 |
| K37Y0.55KW | 0.55kw | 257rpm | 20N.m | 6.9 |
| K37Y0.55KW | 0.55kw | 347rpm | 15N.m | 8.3 |
K38減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y0.75KW | 0.75KW | 32rpm | 225N.m | 0.9 |
| K37Y0.75KW | 0.75KW | 37rpm | 193N.m | 1.05 |
| K37Y0.75KW | 0.75KW | 40rpm | 181N.m | 1.1 |
| K37Y0.75KW | 0.75KW | 47rpm | 152N.m | 1.3 |
| K37Y0.75KW | 0.75KW | 49rpm | 146N.m | 1.35 |
| K37Y0.75KW | 0.75KW | 56rpm | 127N.m | 1.6 |
| K37Y0.75KW | 0.75KW | 60rpm | 119N.m | 1.65 |
| K37Y0.75KW | 0.75KW | 70rpm | 102N.m | 1.8 |
| K37Y0.75KW | 0.75KW | 82rpm | 87N.m | 2.1 |
| K37Y0.75KW | 0.75KW | 92rpm | 78N.m | 2.2 |
| K37Y0.75KW | 0.75KW | 108rpm | 66N.m | 2.5 |
| K37Y0.75KW | 0.75KW | 116rpm | 62N.m | 2.6 |
| K37Y0.75KW | 0.75KW | 134rpm | 53N.m | 3 |
| K37Y0.75KW | 0.75KW | 158rpm | 45N.m | 3.5 |
| K37Y0.75KW | 0.75KW | 177rpm | 40N.m | 3.8 |
| K37Y0.75KW | 0.75KW | 207rpm | 34N.m | 4.4 |
| K37Y0.75KW | 0.75KW | 221rpm | 32N.m | 4.5 |
| K37Y0.75KW | 0.75KW | 263rpm | 27N.m | 5.2 |
| K37Y0.75KW | 0.75KW | 354rpm | 20N.m | 6.2 |
K38減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y1.1KW | 1.1KW | 47rpm | 220N.m | 0.9 |
| K37Y1.1KW | 1.1KW | 56rpm | 186N.m | 1.05 |
| K37Y1.1KW | 1.1KW | 60rpm | 174N.m | 1.1 |
| K37Y1.1KW | 1.1KW | 70rpm | 150N.m | 1.25 |
| K37Y1.1KW | 1.1KW | 82rpm | 128N.m | 1.4 |
| K37Y1.1KW | 1.1KW | 92rpm | 114N.m | 1.55 |
| K37Y1.1KW | 1.1KW | 108rpm | 98N.m | 1.7 |
| K37Y1.1KW | 1.1KW | 116rpm | 90N.m | 1.75 |
| K37Y1.1KW | 1.1KW | 134rpm | 78N.m | 2 |
| K37Y1.1KW | 1.1KW | 158rpm | 66N.m | 2.4 |
| K37Y1.1KW | 1.1KW | 177rpm | 59N.m | 2.6 |
| K37Y1.1KW | 1.1KW | 207rpm | 51N.m | 3 |
| K37Y1.1KW | 1.1KW | 221rpm | 47N.m | 3.1 |
| K37Y1.1KW | 1.1KW | 263rpm | 40N.m | 3.5 |
| K37Y1.1KW | 1.1KW | 354rpm | 30N.m | 4.2 |
K38減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y1.5KW | 1.5KW | 60rpm | 235N.m | 0.8 |
| K37Y1.5KW | 1.5KW | 69rpm | 205N.m | 0.9 |
| K37Y1.5KW | 1.5KW | 82rpm | 176N.m | 1.05 |
| K37Y1.5KW | 1.5KW | 91rpm | 157N.m | 1.1 |
| K37Y1.5KW | 1.5KW | 107rpm | 134N.m | 1.25 |
| K37Y1.5KW | 1.5KW | 115rpm | 124N.m | 1.3 |
| K37Y1.5KW | 1.5KW | 133rpm | 107N.m | 1.5 |
| K37Y1.5KW | 1.5KW | 157rpm | 91N.m | 1.75 |
| K37Y1.5KW | 1.5KW | 176rpm | 81N.m | 1.9 |
| K37Y1.5KW | 1.5KW | 206rpm | 70N.m | 2.2 |
| K37Y1.5KW | 1.5KW | 220rpm | 65N.m | 2.2 |
| K37Y1.5KW | 1.5KW | 261rpm | 55N.m | 2.6 |
| K37Y1.5KW | 1.5KW | 352rpm | 41N.m | 3.1 |
K38減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y2.2KW | 2.2KW | 107rpm | 196N.m | 0.85 |
| K37Y2.2KW | 2.2KW | 133rpm | 157N.m | 1 |
| K37Y2.2KW | 2.2KW | 157rpm | 134N.m | 1.2 |
| K37Y2.2KW | 2.2KW | 176rpm | 119N.m | 1.3 |
| K37Y2.2KW | 2.2KW | 206rpm | 102N.m | 1.45 |
| K37Y2.2KW | 2.2KW | 220rpm | 96N.m | 1.5 |
| K37Y2.2KW | 2.2KW | 261rpm | 80N.m | 1.75 |
| K37Y2.2KW | 2.2KW | 352rpm | 60N.m | 2.1 |
K38減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K37Y3KW | 3KW | 157rpm | 182N.m | 0.9 |
| K37Y3KW | 3KW | 176rpm | 163N.m | 0.95 |
| K37Y3KW | 3KW | 206rpm | 139N.m | 1.1 |
| K37Y3KW | 3KW | 220rpm | 130N.m | 1.1 |
| K37Y3KW | 3KW | 261rpm | 110N.m | 1.3 |
| K37Y3KW | 3KW | 352rpm | 81N.m | 1.55 |
K38減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K38減速機
關鍵詞:GK型減速機配電機一體式_螺旋錐齒輪減速器_K系列減速機_雙出軸減速機_90度減速機_螺旋錐齒輪減速機_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速馬達型號：K38減速機,K48減速機,K58減速機,K68減速機,K78減速機,K88減速機,K98減速機,K108減速機,K128減速機,K158減速機,K168減速機,K188減速機
K系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: K38減速電機 K37直角齒輪減速機 K37減速機功率 K37減速機基座尺寸 K37減速機模型 K37減速機型號參數
