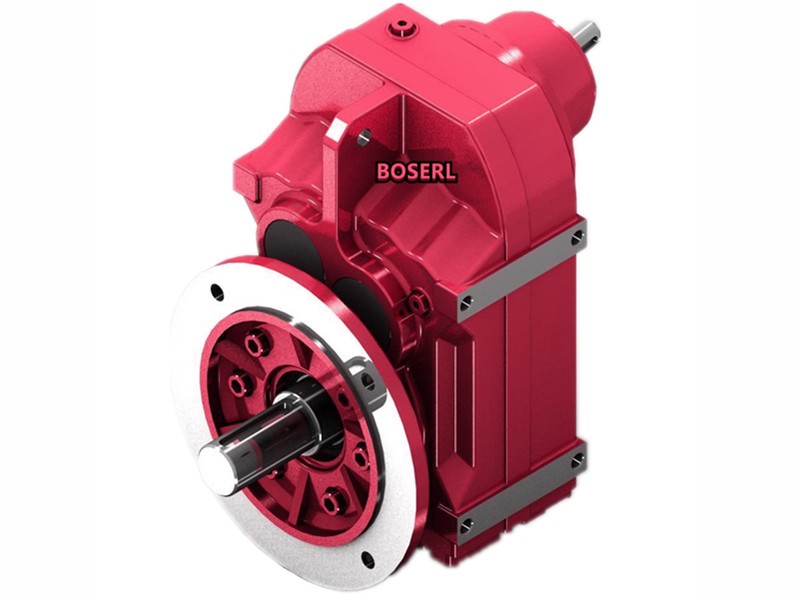

FF28減速電機詳細信息
FF28減速電機
訂購熱線：13360667204
FF28減速電機基座參數計算公式：齒輪減速馬達
轉角滾筒輸送帶參數：負載1600Kg，傳送筒直徑φ43mm，轉動速度0.18m/s
運輸速度0.18m×60s=10.8m每分鐘
3.14(圓周率)×0.043m(傳送筒直徑43mm)=0.13502m
10.8m÷0.13502m=79.99r/min輸出轉數
傳送物料1600Kg換算成N=15680n
15680n×0.0215傳送筒半徑×0.06摩擦系數=20.23×2=40.46N.m輸出扭矩
1400電機輸入轉速÷79.99r/min=17.5減速比
40.46N.m輸出扭矩÷17.5減速比=2.312N.m電機扭矩
2.312N.m電機扭矩換算成電機功率=0.37KW左右
對應的FF28減速電機功率型號：
型號：FF28-BEJ0.37KW
減速比：18.84
輸出轉數：73rpm
輸出扭矩：48N.m
安全系數：2.7
FF28減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機
FF28平行軸減速機型號：
FF28減速電機型號參數：剎車電機減速機
FF28減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y0.12KW | 140.74 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 129.09 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 109.90 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 94.76 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 88.32 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 77.21 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 72.37 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 63.86 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 56.62 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 50.19 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 46.78 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 40.89 | 0.12KW | 15.5Kg | 4500N |
| FF28-Y0.12KW | 38.33 | 0.12KW | 15.5Kg | 4430N |
| FF28-Y0.12KW | 33.83 | 0.12KW | 15.5Kg | 4270N |
| FF28-Y0.12KW | 29.56 | 0.12KW | 15.5Kg | 4100N |
| FF28-Y0.12KW | 27.18 | 0.12KW | 15.5Kg | 4000N |
| FF28-Y0.12KW | 23.25 | 0.12KW | 15.5Kg | 3820N |
| FF28-Y0.12KW | 20.15 | 0.12KW | 15.5Kg | 3650N |
| FF28-Y0.12KW | 18.84 | 0.12KW | 15.5Kg | 3580N |
| FF28-Y0.12KW | 16.28 | 0.12KW | 15.5Kg | 3420N |
| FF28-Y0.12KW | 13.84 | 0.12KW | 15.5Kg | 3250N |
| FF28-Y0.12KW | 12.35 | 0.12KW | 15.5Kg | 3140N |
| FF28-Y0.12KW | 10.55 | 0.12KW | 15.5Kg | 2990N |
| FF28-Y0.12KW | 9.88 | 0.12KW | 15.5Kg | 2920N |
| FF28-Y0.12KW | 9.40 | 0.12KW | 15.5Kg | 2870N |
| FF28-Y0.12KW | 8.13 | 0.12KW | 15.5Kg | 2740N |
| FF28-Y0.12KW | 6.91 | 0.12KW | 15.5Kg | 2600N |
| FF28-Y0.12KW | 6.17 | 0.12KW | 15.5Kg | 2510N |
| FF28-Y0.12KW | 5.27 | 0.12KW | 15.5Kg | 2390N |
| FF28-Y0.12KW | 4.93 | 0.12KW | 15.5Kg | 2340N |
| FF28-Y0.12KW | 4.16 | 0.12KW | 15.5Kg | 2210N |
FF28減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y0.18KW | 109.90 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 94.76 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 88.32 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 77.21 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 72.37 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 63.86 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 56.62 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 50.19 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 46.78 | 0.18KW | 16Kg | 4500N |
| FF28-Y0.18KW | 40.89 | 0.18KW | 16Kg | 4410N |
| FF28-Y0.18KW | 38.33 | 0.18KW | 16Kg | 4340N |
| FF28-Y0.18KW | 33.83 | 0.18KW | 16Kg | 4200N |
| FF28-Y0.18KW | 29.56 | 0.18KW | 16Kg | 4040N |
| FF28-Y0.18KW | 27.18 | 0.18KW | 16Kg | 3950N |
| FF28-Y0.18KW | 23.25 | 0.18KW | 16Kg | 3780N |
| FF28-Y0.18KW | 20.15 | 0.18KW | 16Kg | 3630N |
| FF28-Y0.18KW | 18.84 | 0.18KW | 16Kg | 3560N |
| FF28-Y0.18KW | 16.28 | 0.18KW | 16Kg | 3410N |
| FF28-Y0.18KW | 13.84 | 0.18KW | 16Kg | 3240N |
| FF28-Y0.18KW | 12.35 | 0.18KW | 16Kg | 3140N |
| FF28-Y0.18KW | 10.55 | 0.18KW | 16Kg | 2990N |
| FF28-Y0.18KW | 9.88 | 0.18KW | 16Kg | 2930N |
| FF28-Y0.18KW | 9.40 | 0.18KW | 16Kg | 2870N |
| FF28-Y0.18KW | 8.13 | 0.18KW | 16Kg | 2750N |
| FF28-Y0.18KW | 6.91 | 0.18KW | 16Kg | 2610N |
| FF28-Y0.18KW | 6.17 | 0.18KW | 16Kg | 2520N |
| FF28-Y0.18KW | 5.27 | 0.18KW | 16Kg | 2400N |
| FF28-Y0.18KW | 4.93 | 0.18KW | 16Kg | 2350N |
| FF28-Y0.18KW | 4.16 | 0.18KW | 16Kg | 2230N |
FF28減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y0.25KW | 77.21 | 0.25KW | 20Kg | 4500N |
| FF28-Y0.25KW | 72.37 | 0.25KW | 20Kg | 4500N |
| FF28-Y0.25KW | 63.86 | 0.25KW | 20Kg | 4500N |
| FF28-Y0.25KW | 56.62 | 0.25KW | 20Kg | 4500N |
| FF28-Y0.25KW | 50.19 | 0.25KW | 20Kg | 4440N |
| FF28-Y0.25KW | 46.78 | 0.25KW | 20Kg | 4370N |
| FF28-Y0.25KW | 40.89 | 0.25KW | 20Kg | 4240N |
| FF28-Y0.25KW | 38.33 | 0.25KW | 20Kg | 4180N |
| FF28-Y0.25KW | 33.83 | 0.25KW | 20Kg | 4060N |
| FF28-Y0.25KW | 29.56 | 0.25KW | 20Kg | 3920N |
| FF28-Y0.25KW | 27.18 | 0.25KW | 20Kg | 3840N |
| FF28-Y0.25KW | 23.25 | 0.25KW | 20Kg | 3690N |
| FF28-Y0.25KW | 20.15 | 0.25KW | 20Kg | 3550N |
| FF28-Y0.25KW | 18.84 | 0.25KW | 20Kg | 3480N |
| FF28-Y0.25KW | 16.28 | 0.25KW | 20Kg | 3350N |
| FF28-Y0.25KW | 13.84 | 0.25KW | 20Kg | 3200N |
| FF28-Y0.25KW | 12.35 | 0.25KW | 20Kg | 3090N |
| FF28-Y0.25KW | 10.55 | 0.25KW | 20Kg | 2950N |
| FF28-Y0.25KW | 9.88 | 0.25KW | 20Kg | 2900N |
| FF28-Y0.25KW | 9.40 | 0.25KW | 20Kg | 2840N |
| FF28-Y0.25KW | 8.13 | 0.25KW | 20Kg | 2720N |
| FF28-Y0.25KW | 6.91 | 0.25KW | 20Kg | 2590N |
| FF28-Y0.25KW | 6.17 | 0.25KW | 20Kg | 2500N |
| FF28-Y0.25KW | 5.27 | 0.25KW | 20Kg | 2380N |
| FF28-Y0.25KW | 4.93 | 0.25KW | 20Kg | 2340N |
| FF28-Y0.25KW | 4.16 | 0.25KW | 20Kg | 2220N |
FF28減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y0.37KW | 56.62 | 0.37KW | 20.5Kg | 4080N |
| FF28-Y0.37KW | 50.19 | 0.37KW | 20.5Kg | 4010N |
| FF28-Y0.37KW | 46.78 | 0.37KW | 20.5Kg | 3970N |
| FF28-Y0.37KW | 40.89 | 0.37KW | 20.5Kg | 3880N |
| FF28-Y0.37KW | 38.33 | 0.37KW | 20.5Kg | 3840N |
| FF28-Y0.37KW | 33.83 | 0.37KW | 20.5Kg | 3750N |
| FF28-Y0.37KW | 29.56 | 0.37KW | 20.5Kg | 3650N |
| FF28-Y0.37KW | 27.18 | 0.37KW | 20.5Kg | 3580N |
| FF28-Y0.37KW | 23.25 | 0.37KW | 20.5Kg | 3460N |
| FF28-Y0.37KW | 20.15 | 0.37KW | 20.5Kg | 3340N |
| FF28-Y0.37KW | 18.84 | 0.37KW | 20.5Kg | 3290N |
| FF28-Y0.37KW | 16.28 | 0.37KW | 20.5Kg | 3170N |
| FF28-Y0.37KW | 13.84 | 0.37KW | 20.5Kg | 3040N |
| FF28-Y0.37KW | 12.35 | 0.37KW | 20.5Kg | 2950N |
| FF28-Y0.37KW | 10.55 | 0.37KW | 20.5Kg | 2820N |
| FF28-Y0.37KW | 9.88 | 0.37KW | 20.5Kg | 2770N |
| FF28-Y0.37KW | 9.40 | 0.37KW | 20.5Kg | 2710N |
| FF28-Y0.37KW | 8.13 | 0.37KW | 20.5Kg | 2600N |
| FF28-Y0.37KW | 6.91 | 0.37KW | 20.5Kg | 2490N |
| FF28-Y0.37KW | 6.17 | 0.37KW | 20.5Kg | 2410N |
| FF28-Y0.37KW | 5.27 | 0.37KW | 20.5Kg | 2300N |
| FF28-Y0.37KW | 4.93 | 0.37KW | 20.5Kg | 2250N |
| FF28-Y0.37KW | 4.16 | 0.37KW | 20.5Kg | 2140N |
FF28減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y0.55KW | 23.25 | 0.55KW | 25Kg | 3200N |
| FF28-Y0.55KW | 20.15 | 0.55KW | 25Kg | 3120N |
| FF28-Y0.55KW | 18.84 | 0.55KW | 25Kg | 3080N |
| FF28-Y0.55KW | 16.28 | 0.55KW | 25Kg | 2990N |
| FF28-Y0.55KW | 13.84 | 0.55KW | 25Kg | 2890N |
| FF28-Y0.55KW | 12.35 | 0.55KW | 25Kg | 2810N |
| FF28-Y0.55KW | 10.55 | 0.55KW | 25Kg | 2710N |
| FF28-Y0.55KW | 9.88 | 0.55KW | 25Kg | 2660N |
| FF28-Y0.55KW | 9.40 | 0.55KW | 25Kg | 2600N |
| FF28-Y0.55KW | 8.13 | 0.55KW | 25Kg | 2500N |
| FF28-Y0.55KW | 6.91 | 0.55KW | 25Kg | 2400N |
| FF28-Y0.55KW | 6.17 | 0.55KW | 25Kg | 2330N |
| FF28-Y0.55KW | 5.27 | 0.55KW | 25Kg | 2230N |
| FF28-Y0.55KW | 4.93 | 0.55KW | 25Kg | 2190N |
| FF28-Y0.55KW | 4.16 | 0.55KW | 25Kg | 2090N |
FF28減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y0.75KW | 23.25 | 0.75KW | 26Kg | 2910N |
| FF28-Y0.75KW | 20.15 | 0.75KW | 26Kg | 2860N |
| FF28-Y0.75KW | 18.84 | 0.75KW | 26Kg | 2840N |
| FF28-Y0.75KW | 16.28 | 0.75KW | 26Kg | 2770N |
| FF28-Y0.75KW | 13.84 | 0.75KW | 26Kg | 2700N |
| FF28-Y0.75KW | 12.35 | 0.75KW | 26Kg | 2640N |
| FF28-Y0.75KW | 10.55 | 0.75KW | 26Kg | 2560N |
| FF28-Y0.75KW | 9.88 | 0.75KW | 26Kg | 2520N |
| FF28-Y0.75KW | 9.40 | 0.75KW | 26Kg | 2450N |
| FF28-Y0.75KW | 8.13 | 0.75KW | 26Kg | 2370N |
| FF28-Y0.75KW | 6.91 | 0.75KW | 26Kg | 2290N |
| FF28-Y0.75KW | 6.17 | 0.75KW | 26Kg | 2230N |
| FF28-Y0.75KW | 5.27 | 0.75KW | 26Kg | 2140N |
| FF28-Y0.75KW | 4.93 | 0.75KW | 26Kg | 2100N |
| FF28-Y0.75KW | 4.16 | 0.75KW | 26Kg | 2010N |
FF28減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y1.1KW | 20.15 | 1.1KW | 30Kg | 2440N |
| FF28-Y1.1KW | 18.84 | 1.1KW | 30Kg | 2440N |
| FF28-Y1.1KW | 16.28 | 1.1KW | 30Kg | 2440N |
| FF28-Y1.1KW | 13.84 | 1.1KW | 30Kg | 2410N |
| FF28-Y1.1KW | 12.35 | 1.1KW | 30Kg | 2390N |
| FF28-Y1.1KW | 10.55 | 1.1KW | 30Kg | 2340N |
| FF28-Y1.1KW | 9.88 | 1.1KW | 30Kg | 2320N |
| FF28-Y1.1KW | 9.40 | 1.1KW | 30Kg | 2240N |
| FF28-Y1.1KW | 8.13 | 1.1KW | 30Kg | 2190N |
| FF28-Y1.1KW | 6.91 | 1.1KW | 30Kg | 2130N |
| FF28-Y1.1KW | 6.17 | 1.1KW | 30Kg | 2090N |
| FF28-Y1.1KW | 5.27 | 1.1KW | 30Kg | 2020N |
| FF28-Y1.1KW | 4.93 | 1.1KW | 30Kg | 2000N |
| FF28-Y1.1KW | 4.16 | 1.1KW | 30Kg | 1920N |
FF28減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y1.5KW | 13.84 | 1.5KW | 33Kg | 2080N |
| FF28-Y1.5KW | 12.35 | 1.5KW | 33Kg | 2090N |
| FF28-Y1.5KW | 10.55 | 1.5KW | 33Kg | 2090N |
| FF28-Y1.5KW | 9.88 | 1.5KW | 33Kg | 2080N |
| FF28-Y1.5KW | 9.40 | 1.5KW | 33Kg | 1990N |
| FF28-Y1.5KW | 8.13 | 1.5KW | 33Kg | 1970N |
| FF28-Y1.5KW | 6.91 | 1.5KW | 33Kg | 1950N |
| FF28-Y1.5KW | 6.17 | 1.5KW | 33Kg | 1920N |
| FF28-Y1.5KW | 5.27 | 1.5KW | 33Kg | 1880N |
| FF28-Y1.5KW | 4.93 | 1.5KW | 33Kg | 1860N |
| FF28-Y1.5KW | 4.16 | 1.5KW | 33Kg | 1810N |
FF28減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF28-Y2.2KW | 16.28 | 2.2KW | 42Kg | 1720N |
| FF28-Y2.2KW | 13.84 | 2.2KW | 42Kg | 1730N |
| FF28-Y2.2KW | 12.35 | 2.2KW | 42Kg | 1730N |
| FF28-Y2.2KW | 10.55 | 2.2KW | 42Kg | 1720N |
| FF28-Y2.2KW | 9.88 | 2.2KW | 42Kg | 1710N |
| FF28-Y2.2KW | 8.13 | 2.2KW | 42Kg | 1610N |
| FF28-Y2.2KW | 6.91 | 2.2KW | 42Kg | 1590N |
| FF28-Y2.2KW | 6.17 | 2.2KW | 42Kg | 1560N |
| FF28-Y2.2KW | 5.27 | 2.2KW | 42Kg | 1520N |
| FF28-Y2.2KW | 4.93 | 2.2KW | 42Kg | 1510N |
| FF28-Y2.2KW | 4.16 | 2.2KW | 42Kg | 1460N |
